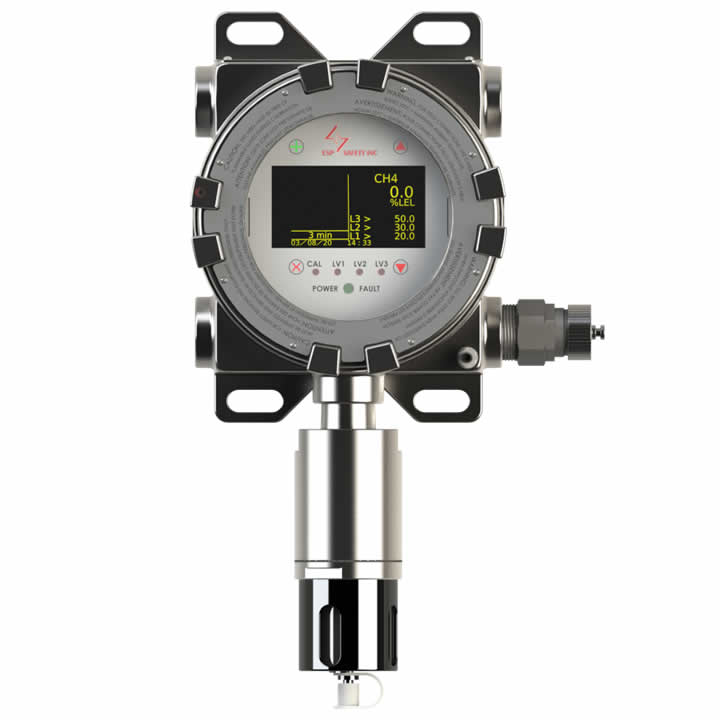

Vector- Combustible
The Vector is state-of the-art point gas detector with local display. It can be configured to monitor up to two sensors directly connected or remotely installed up to a separating distance of 500 ft. For combustible detection, it can use a plug-in sensor that is either IR (Infrared) or a catalytic bead type.
The unit comes standard with multiple outputs, allowing you to choose whether to connect via 4-20mA, RS485, or relay to your system for reliable communication. The Vector makes the calibration process easy and seamless with on-site non-intrusive calibration via local display or using HART hand held device. The event log stored in on-board memory allows it to maintain calibration records and diagnostics.
The Vector can be used as a multi-use display unit that can receive signals from all of ESP Safety’s gas detectors (SGOES, TGAES, and PGU). The vivid OLED display shows the type of gas, real-time concentration, and alarm levels.
The detector comes in stainless steel housing.
Electrical Specifications
- Power Requirements: 24VDC Nominal (18 to 32VDC)
- Power Consumption: 4.3 W-Standby; 5.3 W-During Alarms; 12.0 W-w/ Heater On (temp ≤ 30°F)
- Signal Output From Vector FCU: 2x +4-20mA analog output, Digital RS-485 Modbus RTU, Relays, HART
- Alarm Relays:
- 3 User Programmed Alarm Relays (factory default setting: NO)
- 1 Fault Condition Programmed Relay (factory default setting: NC)
Mechanical Specifications
- Ingress Protection: IP66/67
- Operating Temperature: -58°F to +167°C (-50°C to +75°C) -76°F to +167°C (-60°C to +75°C) with heater enabled
- Storage Temperature: -76°F to +185°C (-60°C to +85°C)
- Humidity Range: 0 to 100% Relative Humidity, Non-Condensing
- Conduit Connection: ¾” NPT
- 2 Connections for Sensors
- 2 Connections for Field Wiring
- Enclosure Material: Stainless Steel (Grade 316L) or Aluminum
- Dimensions: 7.50” x 5.60” x 4.28” (190.5mm x 142.24mm x 108.71mm)
- Weight: Vector with one PGU attached – 14.00 lbs (6.35 kg)
