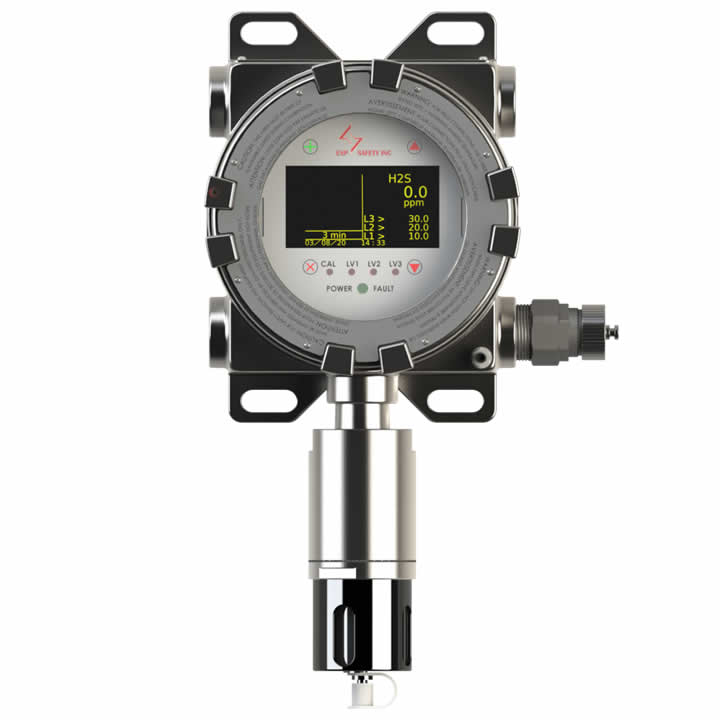

Vector- Toxic
The Vector Toxic Gas Detector is designed to safely detect and monitor a variety of toxic gases in the air, including hydrogen sulfide, carbon monoxide, chlorine, nitric oxide, sulfur dioxide, and many others. To see the full list of detected gases please go the tab “type of gases” on this page.
It can be configured to monitor up to two sensors directly connected or remotely installed up to a separating distance of 500 ft.
The unit comes standard with multiple outputs, allowing you to choose whether to connect via 4-20mA, RS485, or relay to your system for reliable communication. The Vector makes the calibration process easy and seamless with on-site non-intrusive calibration via local display or using HART hand held device. The event log stored in on-board memory allows it to maintain calibration records and diagnostics.
The vivid OLED display shows the type of gas, real time concentration, and alarm levels.
Electrical Specifications
- Power Requirements: +24VDC Nominal (+18 to 32VDC)
- Power Consumption: 4.3 W-standby; 5.3 W-during alarms; 12.0 W-w/ heater on (temp ≤ 30°F)
- Signal Output From Vector FCU: 2X +4-20mA analog output, Digital RS-485 Modbus RTU, Relays, HART
- Alarm Relays:
- 3 User Programmed Alarm Relays (factory default setting: NO)
- 1 Fault Condition Programmed Relay (factory default setting: NC)
Mechanical Specifications
- Ingress Protection: IP66/67
- Operating Temperature: -58°F to +167°C (-50°C to +75°C) -76°F to +167°C (-60°C to +75°C) with heater enabled
- Storage Temperature: -76°F to +185°C (-60°C to +85°C)
- Humidity Range: 0 to 100% relative humidity, non condensing
- Conduit Connection: ¾” NPT
- 2 connections for Sensors
- 2 connections for Field Wiring
- Enclosure Material: Stainless Steel (Grade 316)
- Dimensions: 7.50” x 5.60” x 4.28″ (190.5mm x 142.24mm x 108.71mm)
- Weight: Vector with one PGU attached – 14.00 lbs (6.35 kg)
